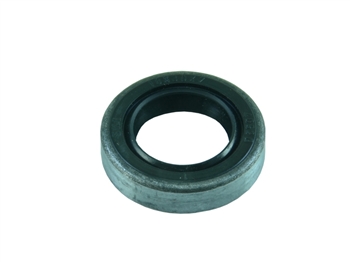

Aftermarket Oil Seal 15x22x4 for Stihl Professional Saws
Ensure your engine's crankcase remains hermetically sealed with this high-quality
non-genuine Oil Seal. Measuring 15x22x4mm, this seal is a direct replacement for Stihl OEM 9640-003-1560. It is designed to prevent air from entering the crankcase through the crankshaft assembly, which is vital for maintaining the correct fuel-to-air ratio.
Ignition Side Application
This specific seal is most commonly used on the
ignition (flywheel) side of Stihl's heavy-duty professional saws. It is built to withstand high rotational speeds and thermal expansion, ensuring a long-lasting seal even in the demanding conditions of commercial logging and felling.
Full Compatibility List:
|
Stihl Chainsaws |
066, MS261, MS341, MS361, MS362, MS441, MS462, MS650, MS660
|
|
OEM Reference
|
9640 003 1560
|
|
Dimensions
|
15 x 22 x 4 mm
|
⚠️ Maintenance Alert:
An air leak through a worn ignition-side seal is often difficult to spot because it is hidden behind the flywheel. Symptoms include a "hanging idle" (where the saw stays at high RPM after letting off the throttle) or a saw that runs perfectly when cold but dies when hot.
🛠️ Mechanic's Tip:
Because this 15x22x4mm seal is smaller than the clutch-side seal, it is often subject to different wear patterns. On high-hour saws like the MS 660 or MS 462, it is best practice to replace both the ignition and clutch side seals simultaneously to ensure a complete and reliable top-end or bottom-end overhaul.
9640 003 1560
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Fits models:
- Stihl 066, MS261, MS341, MS361, MS362, MS441, MS462, MS650, MS660, TS410, TS420
|
|
|
|
|
|
|
Good part
SEAL
