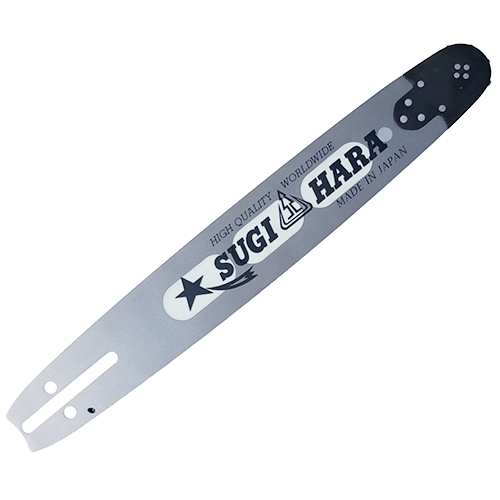

Sugihara 28" Lightweight Guide Bar - 3/8" x .063" (D025 Mount)
Experience the legendary durability of Japanese engineering with the 28-inch Sugihara lightweight guide bar. This version is designed for the .063" gauge standard, providing a robust rail platform for high-performance Stihl saws. By utilizing resin-filled weight-reduction pockets, Sugihara has created a bar that is significantly lighter than solid steel alternatives, offering superior balance for 28-inch setups.
The Sugihara Edge: Precision Hardened
Every Sugihara bar is machined from a single block of high-carbon alloy steel. The rails are induction-hardened to RC60, making them resistant to the "spreading" and wear that often plague softer bars. The polished steel finish ensures a smooth, low-friction surface that keeps the chain running cool even during heavy-duty felling and bucking in hardwood.
Product Specifications:
| Bar Length | 28" (70cm) |
| Pitch / Gauge | 3/8" Standard / .063" Gauge |
| Drive Link Count | 91 Drive Links |
| Tail Mount | D025 (Stihl Large Mount / 3003) |
| Construction | Lightweight Solid Steel (Replaceable Sprocket Nose) |
Model Compatibility (Stihl Large Mount):
Fits Stihl Models: 038, 044, 046, 064, 066, MS 380, MS 440, MS 441, MS 460, MS 461, MS 462, MS 500i, MS 650, MS 660, and MS 661.
⚠️ Gauge & Pitch Warning:
This bar is designed for .063" gauge chain and 3/8" standard pitch sprockets. Please verify that your saw is set up for .063" gauge before ordering, as it is NOT compatible with .050" or .058" chains.
⚙️ Maintenance & Replacement Parts:
🛠️ Mechanic's Tip:
For 28" bars, ensuring proper oil flow is critical to protecting those RC60 rails. This bar features the T2-3Q replaceable nose—if the tip bearings fail or the sprocket teeth wear, you can replace just the nose rather than the entire bar. Always flip your bar daily to ensure the rails wear evenly and maintain a straight cut.
- Length: 28"
Pitch: 3/8"
Gauge: .063"
Drive links: 91
Bar mount: D025, Stihl large mount
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Fits models:
- Stihl 038, 044, 046, 064, 066, MS380, MS440, MS441, MS460, MS461, MS462, MS500i, MS650, MS660, MS661
|
|
|
|
|
|
|
