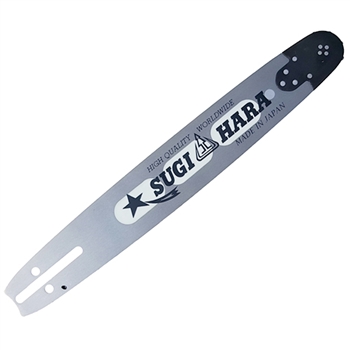

Sugihara 28" Lightweight Bar & Chain Combo - 3/8" x .050" (D025 Mount)
Maximize the reach and balance of your large Stihl saw with this professional Sugihara bar and chain combo. This set pairs a 28-inch Japanese-made lightweight guide bar with a high-performance 91 drive link chain. By replacing a standard heavy bar with this weight-reduced version, you gain better control and significantly less front-end weight, making it ideal for all-day felling and bucking.
The Sugihara Advantage
Sugihara bars are legendary among tree professionals for their extreme rail hardness (RC60). This durability, combined with a polished steel finish that eliminates friction-causing blemishes, allows these bars to outlast standard equipment by a wide margin. The resin-filled weight reduction pockets ensure the bar remains stiff and professional while cutting weight by up to 30%.
Combo Specifications:
| Bar Length | 28" (70cm) |
| Pitch / Gauge | 3/8" Standard / .050" Gauge |
| Drive Link Count | 91 Drive Links |
| Tail Mount | D025 (Stihl Large Mount / 3003) |
| Bar Type | Lightweight Solid Steel (Replaceable Nose) |
Model Compatibility:
Fits Stihl Models: 038, 044, 046, 064, 066, MS 380, MS 440, MS 441, MS 460, MS 461, MS 462, MS 500i, MS 650, MS 660, and MS 661.
⚠️ Compatibility Warning:
This combo is strictly for saws with a 3/8" standard pitch sprocket. It is not compatible with .325" or 3/8" Low Profile (Picco) systems.
⚙️ Maintenance & Replacement Parts:
🛠️ Mechanic's Tip:
With a 28" bar, keeping your chain tensioned correctly is vital to prevent rail damage. Flip the bar daily and clean out the oil ports at every sharpening to ensure the RC60 rails remain properly lubricated. If the nose tip becomes worn, it can be replaced using part #T2-8Q.
- Length: 28"
Pitch: 3/8"
Gauge: .050"
Drive links: 91
Bar mount: D025, Stihl large mount
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Fits models:
- Stihl 038, 044, 046, 064, 066, MS380, MS440, MS441, MS460, MS461, MS462, MS500i, MS650, MS660, MS661
|
|
|
|
|
|
|
