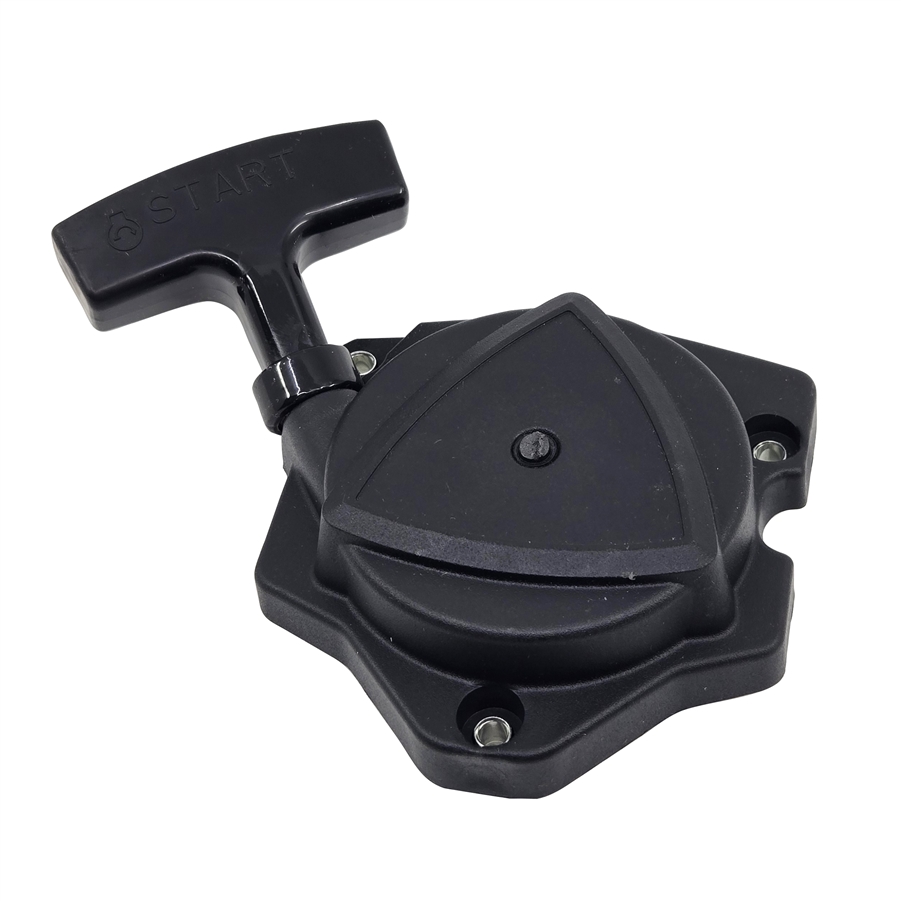

Aftermarket Starter Recoil Assembly for Echo PB-8010/9010 & Shindaiwa EB810/910
Restore reliable starting to your professional backpack blower with this heavy-duty non-genuine Rewind Starter Assembly. Engineered to meet the high-torque demands of 79.9cc engines, this unit is a direct replacement for OEM A051003413 and all previous superseded part numbers.
Heavy-Duty Recoil Mechanism

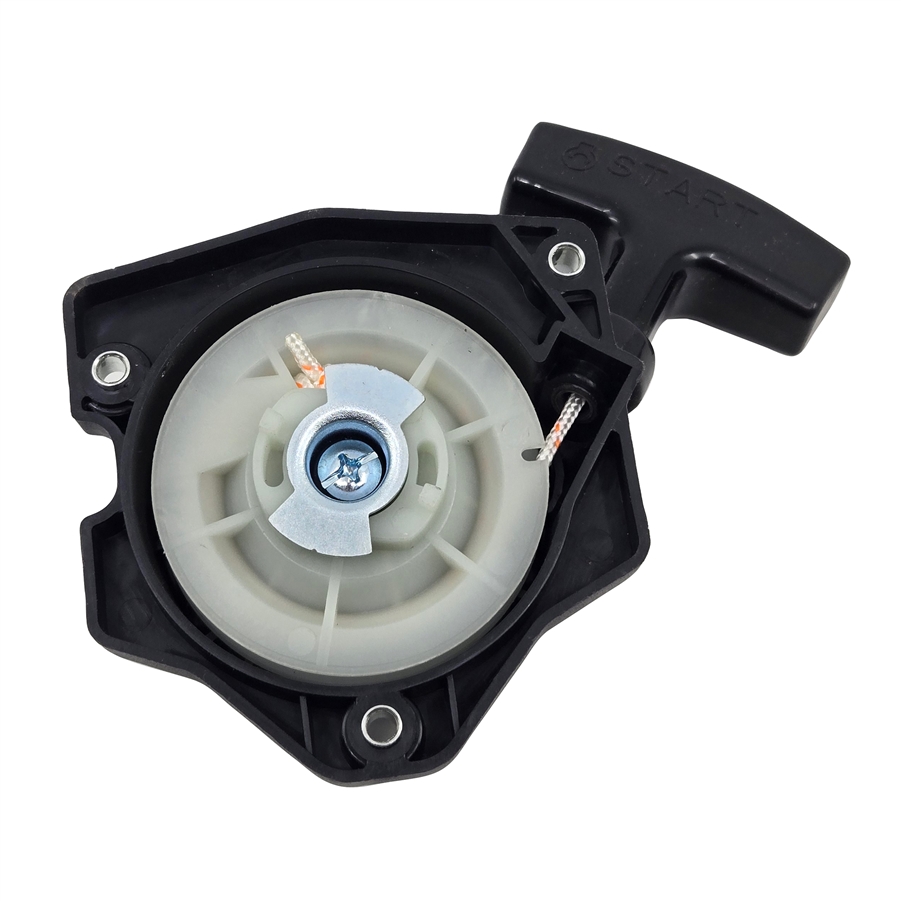

Constructed from impact-resistant polymer and featuring a reinforced spiral spring, this assembly is built for the high-frequency pulling typical of commercial landscaping. It comes fully pre-assembled with the starter housing, pulley, recoil spring, and high-tensile starter rope for a true "bolt-on" repair.
Product Specifications:
| Echo Models | PB-8010H, PB-8010T, PB-9010H, PB-9010T |
| Shindaiwa Models | EB810, EB810RT, EB910, EB910RT |
| Cross Reference (OEM) | A051003413, A051003411, A051003410 |
| Components | Housing, Pulley, Spring, Rope, and Grip |
⚠️ Installation Note:
When installing, ensure the starter pawls on the flywheel are clean and moving freely. Overtightening the mounting bolts can crack the plastic housing; we recommend hand-tightening until snug and then applying a quarter-turn with a T27 wrench.
🛠️ Mechanic's Tip:
If your starter rope is pulling out but not retracting, the spiral spring inside has likely slipped or snapped. While you can replace just the spring, on the 8010/9010 series, the plastic pulley often wears down simultaneously. A complete assembly replacement is the most reliable way to avoid "dead-pulls" in the field.
A051003410
A051003411
A051003412
A051003413
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Fits models:
- Echo PB-8010H, PB-8010T, PB-9010H, PB-9010T
Shindaiwa EB810, EB810RT, EB910, EB910RT
|
|
|
|
|
|
|
