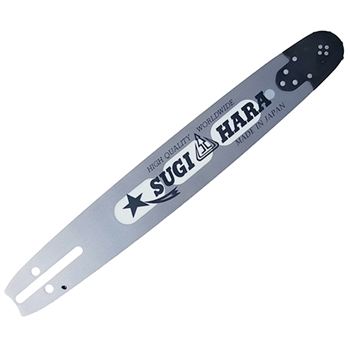

Sugihara 18" Lightweight Guide Bar - .325" x .063" (D025 Mount)
Experience the legendary Japanese craftsmanship of Sugihara guide bars. This 18-inch bar is the professional's choice for Stihl saws, offering the perfect balance of reach and weight reduction. Machined from high-carbon alloy steel with weight-reduction sections, it provides extreme durability while reducing operator fatigue during long shifts.
The Sugihara Edge: Made in Japan
Sugihara bars feature a polished steel finish to ensure there are no hidden surface blemishes that can attract heat. The rail edges are hardened significantly more than the body of the bar, providing superior wear resistance while allowing the core to remain flexible, preventing permanent bends or snaps under pressure.
Product Specifications:
| Bar Length | 18" (45cm) |
| Pitch / Gauge | .325" Pitch / .063" Gauge |
| Drive Link Count | 74 Drive Links |
| Tail Mount | D025 (Stihl Large Mount / 3003) |
| Construction | Lightweight Solid Steel w/ Replaceable Nose |
Model Compatibility (Stihl Large Mount):
- Standard: 024, 026, 028, 029, 034, 036, 039
- Modern: MS 260, MS 261, MS 271
- Rancher/Farm: MS 270, MS 280, MS 290, MS 291
- Large Saws: MS 310, MS 311, MS 360, MS 390, MS 391
⚠️ Pitch Compatibility Warning:
This bar is designed exclusively for saws running a .325" pitch sprocket. It is NOT compatible with 3/8" drive systems. Please verify your saw's drive sprocket pitch before ordering.
⛓️ Maintenance & Replacement Parts:
🛠️ Mechanic's Tip:
The .063" gauge provides a slightly wider rail which many professionals find offers better chain stability and oil carry in hardwoods. Because Sugihara bars use a replaceable nose, you can extend the life of the bar significantly. To ensure maximum longevity, keep the nose sprocket greased and clean your bar rails and oil holes regularly to prevent premature wear.
- Length: 18"
Pitch: .325"
Gauge: .063"
Drive links: 74
Bar mount: D025, Stihl large mount
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Fits models:
- Stihl 024, 028, 029, 034, 036, 039, MS 240, MS 260, MS 261, MS 270, MS 271, MS 280, MS 290 (Farm Boss), MS 291, MS 310, MS 311, MS360, MS 390, MS 391.
|
|
|
|
|
|
|
